Wood fibre board FiberTherm Top density 140kg/m³
Wood fibre boards with density 140 Kg/m³.
Fibertherm Top is a wood fibre board for thermal and acoustic insulation of roofs, attics and floors. Its density, breathability, and permeability protect the construction from moisture and significantly reduce mold formation.

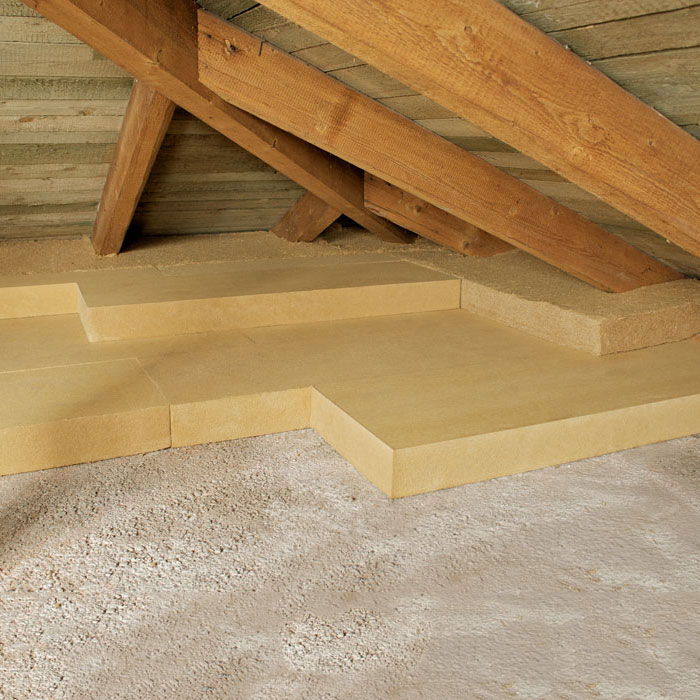

The wood fibre board FiberTherm Top 140 it is a thermal and acoustic insulation for floors. The boards are light and are suitable, with their format of 40·120 cm, to be placed in narrow spaces, such as those that are usually found in the attics and the passage from retractable stairs. Particularly permeable, if moisture penetrates, it can easily evaporate. Protects the construction, so as not to require further protection for steam. It significantly reduces mold formation.
The wood fibre boards FiberTherm Top 140 are able to occupy large areas. Since the boards have a sharp edge, they are completely suitable for difficult assembly in confined spaces. If you work on two layers, we recommend installing vertical joints.
These boards have a specially structured compressed surface, which is characterized by greater stability. A further covering with Betonwood cement bonded particle boards can be useful for environments subjected to heavy loads or those requiring fire resistance.
The wood fibre board Top has a density equal to 140 kg/m³.
The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).
The insulating wood fibre board FiberTherm Top 140 has the following characteristics:
• ideal for the insulation of attics;
• directly reachable without coverings;
• particularly permeable, no further vapor protection is required;
• the reduced size allows a simple and fast processing;
• excellent protection against cold and heat;
• excellent insulating properties, in summer as in winter;
• recyclable, ecological, environment-friendly;
• building material tested and authorized according to current European standards.
Base insulation
The first 100 mm of insulation bring maximum energy savings. Depending on the nature of the substructure, the requirements may also already be considered achieved. The fiber wood boards FiberTherm Top 140 combine effective insulation with a directly walkable surface.
Standard insulation
For those who want to achieve high insulation performance combined with ease of use, it is recommended to install a double layer of FiberTherm Top 140. With two layers of 80 mm thickness, a U value of 0,24 W/(m²·K), so that the EnEV 2009 energy saving requirements are met.
Advanced insulation
The use of FiberTherm wood fibre board as a lower layer allows particularly efficient systems. The boards with load distribution are available in thicknesses up to 160 mm. The cover wood fibre board FiberTherm Top 140 integrates insulation and creates a directly usable surface. Thus, for example, with 220 mm of insulation you can reach U value of 0,18 W/(m²·K) in order to meet the new EnEV 2013 requirements.
Available sizes
| Thickness | Size mm | kg/m² | Pan./pallet | m²/pallet | kg/pallet |
|---|---|---|---|---|---|
| 80 mm | 1200 x 400 | 11,20 | 28 | 13,44 | approx.150 |
| 100 mm | 1200 x 400 | 14,00 | 22 | 10,56 | approx.150 |
Technical characteristics
| Characteristics | Values |
|---|---|
| Density kg/m³ | 140 |
| Fire reaction according to EN 13501-1 | E |
| Coefficient of thermal conductivity λD W/(m∗K) | 0,040 |
| Specific heat J/(kg∗K) | 2.100 |
| Resistance to vapor diffusion μ | 3 |
| Bending resistance at 10% compression (N/mm²) |
0,1 |
| sd value (m) | 0,24(80) /0,30(100) |
| Thermal resistance RD (m²·K)/W | 1,95(80) /2,40(100) |
| Resistance to compression (kPa) | 100 |
| Resistance to traction perpendicular to the faces (kPa) |
≥10 |
| Manufacture controlled according to the standard | EN 13171 |
| Product identification | WF – EN 13171 – T5 – CS (10 \Y )100 - TR10 - MU3 |
| Waste code (EAK) | 030105/170201 |
Solutions with Wood fibre board Fibertherm Top
Dry screed in wood fibre board Top in wood
Dry system for thermal insulation of floors and attics with double layer of wood fibre board FiberTherm Top on wood.
Dry screed in wood fibre board Top on concrete
Dry system for thermal insulation of floors and attics with double layer of wood fibre board FiberTherm Top on concrete support.
Dry screed in wood fibre board Top on terracotta tiles
Dry system for thermal insulation of floors and attics with double layer of wood fibre board FiberTherm Top on terracotta tiles.
