Betonwood provides building solutions for flooring systems with stratigraphies which include our thermal and acoustic insulation with Fibertherm wood fibre board and our cement bonded particle boards: traditional dry screeds, insulated floors, radiant and/or elevated floors.

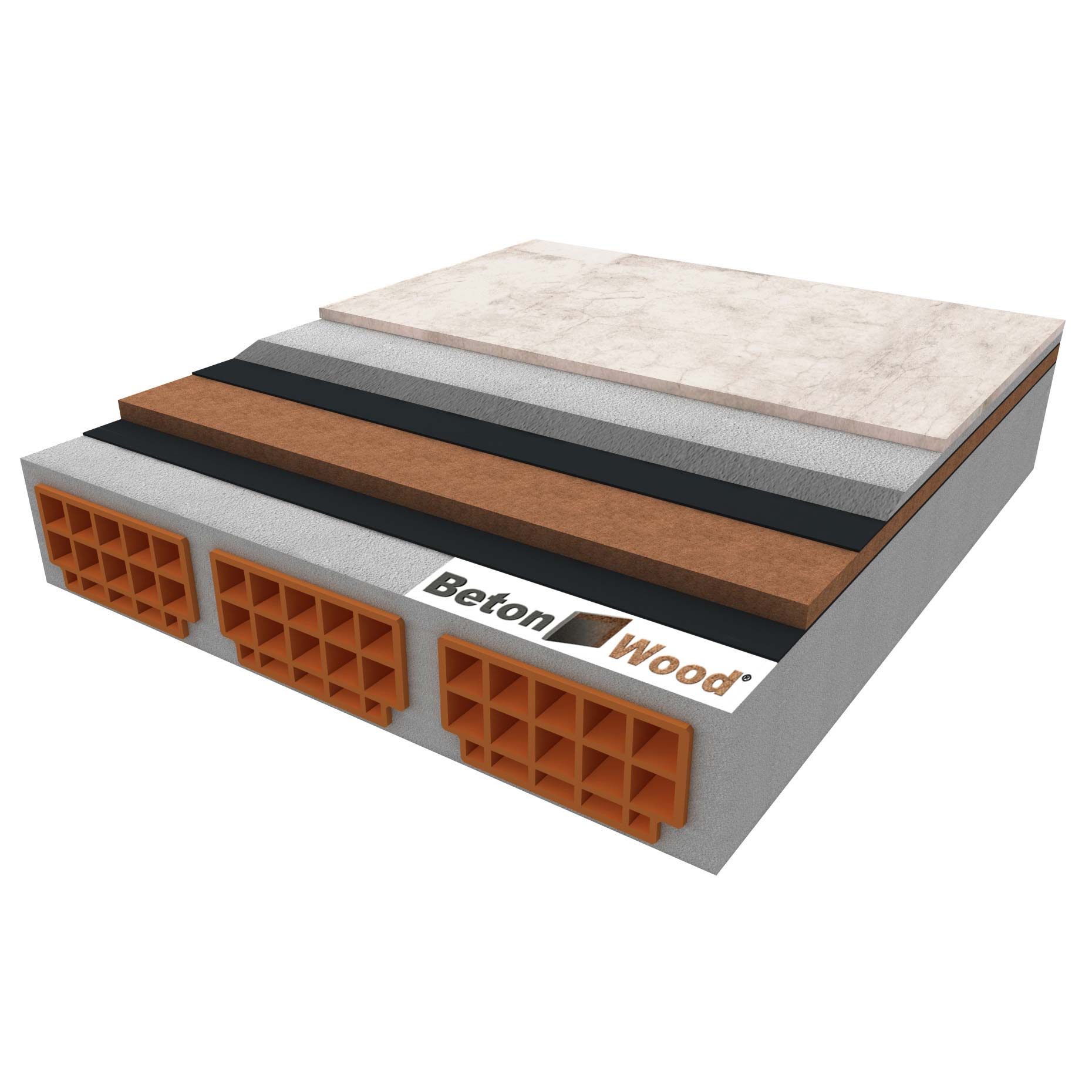

Screed and attic complete system with a double layer of FiberTherm fiber wood density 160kg/m³ with vapor barrier type multi UDB above and below the fiber wood panels and one cement bonded particle boards layer with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³. The walkable dry screed system rests on a concrete structure.

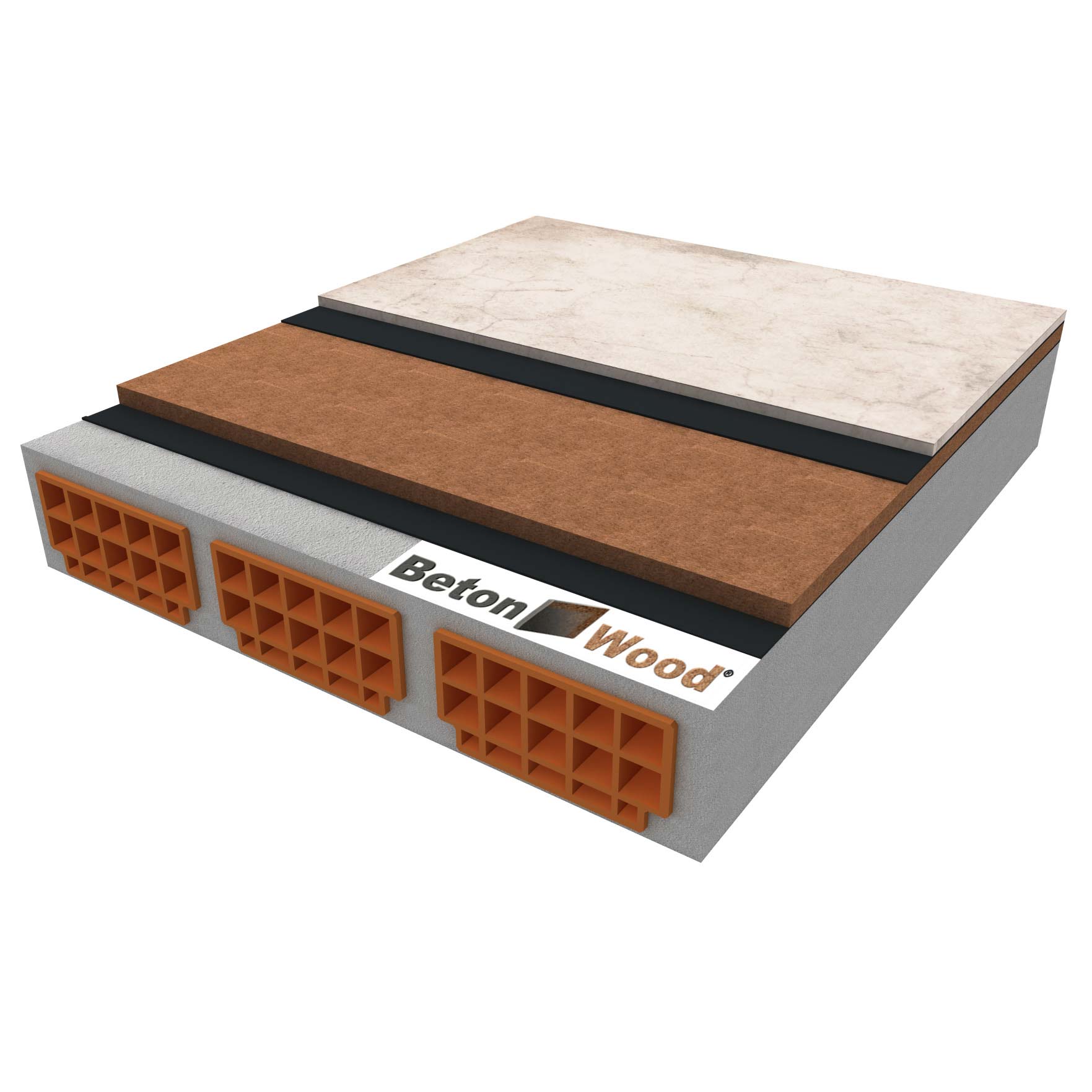

Screed and attic complete system with a single layer of FiberTherm Base fiber wood with high density of 250kg/m³ installed between two vapor barrier type multi UDB above and below the fiber wood panel and one cement bonded particle boards layer with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³. The walkable dry screed system rests on a concrete structure.
Screed and attic complete system with a single layer of FiberTherm Base fiber wood with high density of 250kg/m³ installed between two vapor barrier type multi UDB above and below the fiber wood panel, a concrete casting above therm and one cement bonded particle boards layer with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³. The walkable dry screed system rests on a concrete structure.
Dry screed complete system with flooring system in interlocking fiber wood panels FiberTherm Floor with density 160kg/m³, a fiber wood thin mat FiberTherm Underfloor density 250kg/m³ below one or more cement bonded particle boards layers with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³.
Radiant floor complete system with thermal insulation. The screed is composed initially of a self-leveling compound on the substrate base, successively by a layer of high compression resistance fiber wood panels FiberTherm Base with high density 250kg/m³ and finally the BetonRadiant radiant system in cement bonded particle boards layers with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³.
Radiant floor complete system with thermal insulation on x-lam structure. The screed is composed initially of a self-leveling compound on the substrate base, successively by a layer of high compression resistance fiber wood panels FiberTherm Base with high density 250kg/m³ and finally the BetonRadiant radiant system in cement bonded particle boards layers with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³.
Radiant floor complete system with thermal insulation. Radiant floor is composed with a thin layer of high compression resistance fiber wood FiberTherm Underfloor and with high density 250kg/m³ on the base substrate, above this mat is installed the radiant system BetonRadiant in cement bonded particle boards layers with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³. For the laying of the floor surface finish it must be casting a self-leveling compound on the radiating system.
Screed and attic complete system with a single layer of FiberTherm Base fiber wood with high density of 250kg/m³ fixed above metal sheets structure and covered by one or more cement bonded particle boards layers with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³.
Elevated radiant floor complete system. The elevated floor is composed with adjustable hight support which sustain a layer of cement bonded particle boards with tongue&groove profile and with a density 1350kg/m³, a layer of FiberTherm Underfloor fiber wood with 250kg/m³ density, and the radiant flooring system BetonRadiant.
Elevated radiant floor complete system with internal insulating loose fiber wood. The elevated floor is composed with adjustable hight support which sustain a layer of cement bonded particle boards with tongue&groove profile and with a density 1350kg/m³, a layer of FiberTherm Underfloor fiber wood with 250kg/m³ density, and the radiant flooring system BetonRadiant. The elevated system is filled with loose fiber wood Zell to insulate.
Flexible wood fibre boards density 50 Kg/m³. Flexible wood fibre board for thermal and acoustic insulation of every parts of the building.
Flexible wood fibre board panels density 60 Kg/m³. Flexible wood fibre board with high insulating power, with a very low thermal conductivity equal to 0,036 W/mk.
Flexible wood fibre board strip density 60 Kg/m³. Flexible wood fibre strip for thermal insulation in flooring systems.
Wood fibre boards FiberTherm Roof dry with density 140 Kg/m³. Thermal and acoustic insulation panel ideal for roofs, attics and flooring systems.
Wood fibre boards Therm density 160 Kg/m³. Thermal and acoustic insulation rigid boards ideal to be installed in dry screeds, walls, roofs, attics.
Wood fibre boards Therm SD density 160 Kg/m³. Thermal and acoustic insulation rigid boards ideal to be installed in dry screeds, walls, roofs, attics.
Wood fibre boards Floor density 160 Kg/m³. Thermal and acoustic insulation flooring system with tongue&groove wood fibre boards.
Wood fibre board panels Isorel density 230 Kg/m³. Rigid wood fibre board panel with reduced thicknesses for walls, screeds, roofs and attics.
Bituminous wood fibre boards Bitumfiber density 230 Kg/m³. Boards in bituminous wood fibre board with high compressive strength and ideal for the construction of floors.
Wood fibre boards Base density 250 Kg/m³. Thermal insulation board with high compressive strength, ideal for floors that can be walked on.
Wood fibre boards Underfloor density 250 Kg/m³. Sub-layer mat with high compressive strength ideal for parquet or laminate floors that can be walked on.
Cellulose flakes for filling of walls, roofs, attics and floors cavietes. Cellulose flakes which fills all the empty spaces in the structural elements.
Loose wood fibre for filling of walls, roofs, attics and floors cavietes. Pure ecological wood fibre boards which fills all the empty spaces in the structural elements.
