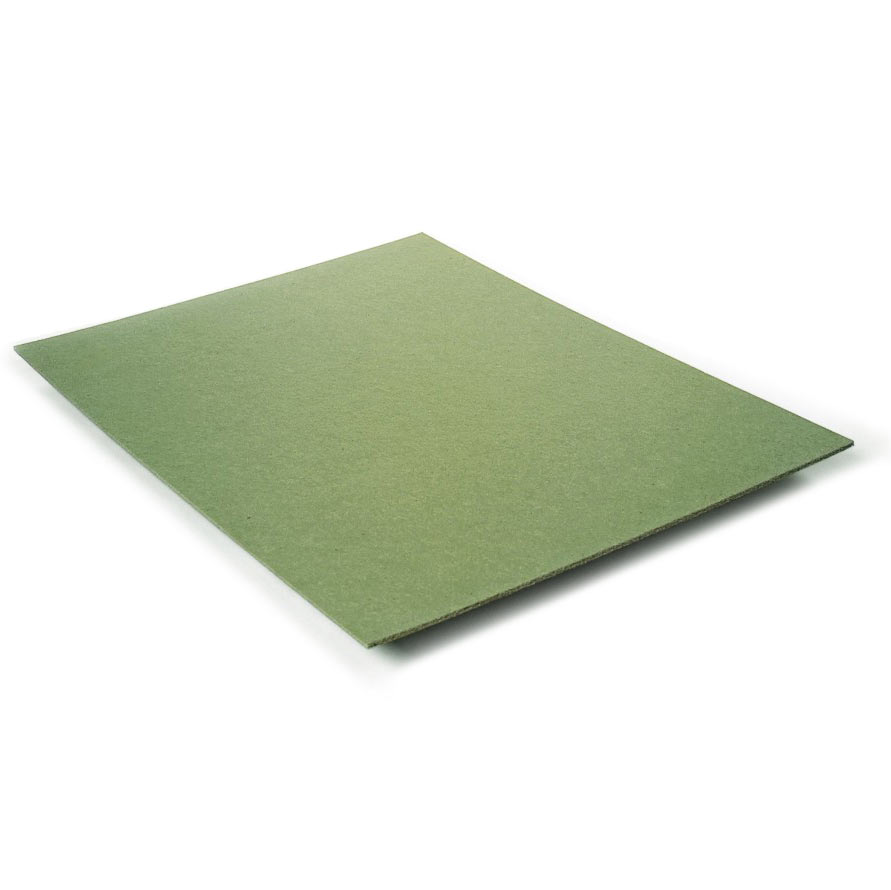

Wood fibre board FiberTherm Underfloor density 250kg/m³
Wood fibre board thin mat density 250 Kg/m³.
Fibertherm Underfloor is a thin mat of wood fibre board with optimal thermal and acoustic insulation values to be used in dry screeds and in solutions for floors and ceilings where greater acoustic insulation is needed. Ideal for traditional and elevated floors.
The Wood fibre board FiberTherm Underfloor 250 is a wood fibre thin mat with high thermal and acoustic insulation values and with which you get a high improvement of acoustics for pre-finished parquet and laminate floors up to 19 dB.
It also has a density of 250 kg/m³.
The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).

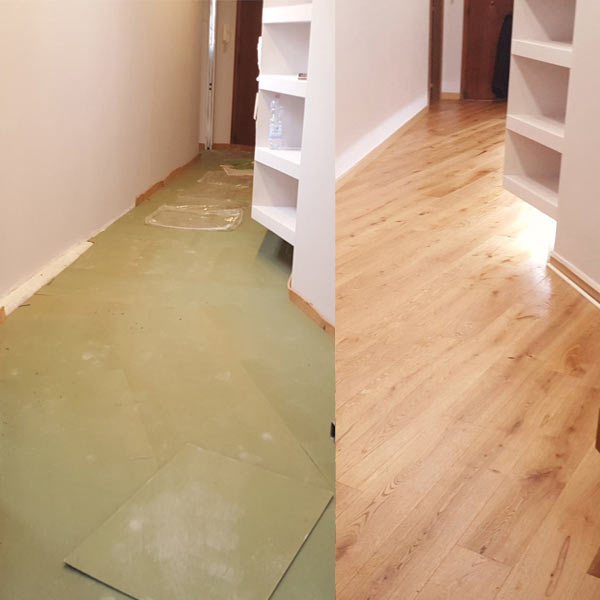

The insulating wood fibre board FiberTherm Underfloor 250 is also excellent when installed in thermal and acoustic insulation systems in parquet and / or laminated floors, below we list the main features:
• good impact sound insulation and high improvement of environmental acoustics;
• excellent insulation characteristics;
• high pressure resistance up to 20 t/m² - important for interlocking systems;
• long life thanks to the stable structure of the fibers;
• particularly open to diffusion;
• resistant to chemical solvents;
• easy and fast processing;
• leveling of irregularities up to 3 mm;
• suitable for underfloor heating systems;
• recyclable, ecological, environment-friendly;
• building material tested and authorized according to current European standards.
Available sizes
wood fibre thin board with sharp edges
| Thickness | Sizes mm | kg/m² | Pieces/pack. | pack./pallet | kg/pallet |
|---|---|---|---|---|---|
| 3 mm | 790 x 590 | 0,77 | 20 | 32 | approx.265 |
| 4 mm | 790 x 590 | 1,02 | 15 | 32 | approx.265 |
| 5 mm | 790 x 590 | 1,28 | 15 | 26 | approx.265 |
| 7 mm | 790 x 590 | 1,75 | 20 | 14 | approx.265 |
Techincal characteristics
| Characteristics | Values |
|---|---|
| Density kg/m³ | 250 |
| Reaction to fire according to the standard EN 13501-1 | E |
| Coefficient of thermal conductivity λD W/(m·K) | 0,070 |
| Specific heat capacity J/(kg·K) | 2.100 |
| Resistance to vapor diffusion μ | 5 |
| sd value (m) | 0,02(4)/ 0,03(5) /0,04(7) |
| Thermal resistance RD (m²·K)/W | 0,06(4)/ 0,07(5) /0,10(7) |
| Panels identification | EN622-4SB-E1 |
| Waste code (EAK) | 030105/170201 |
Solution with Wood fibre board Underfloor
Dry screed with wood fibre board Base
Flooring system using wood fibre boards with high density and excellent compression resistance Fibertherm Base and cement bonded particle boards BetonWood.

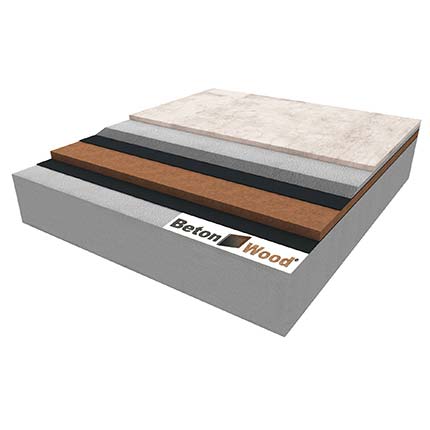

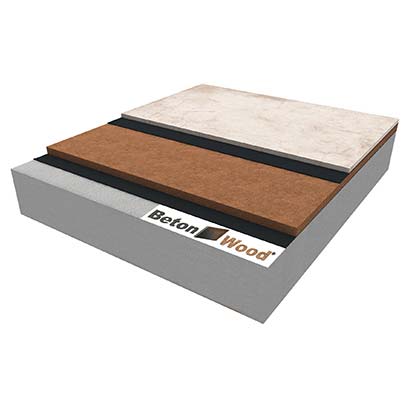

Wood fibre board Base and concrete screed
Flooring system using wood fibre boards Fibertherm Base with high density and high thermal insulation, concrete constructional work and cement bonded particle boards BetonWood.

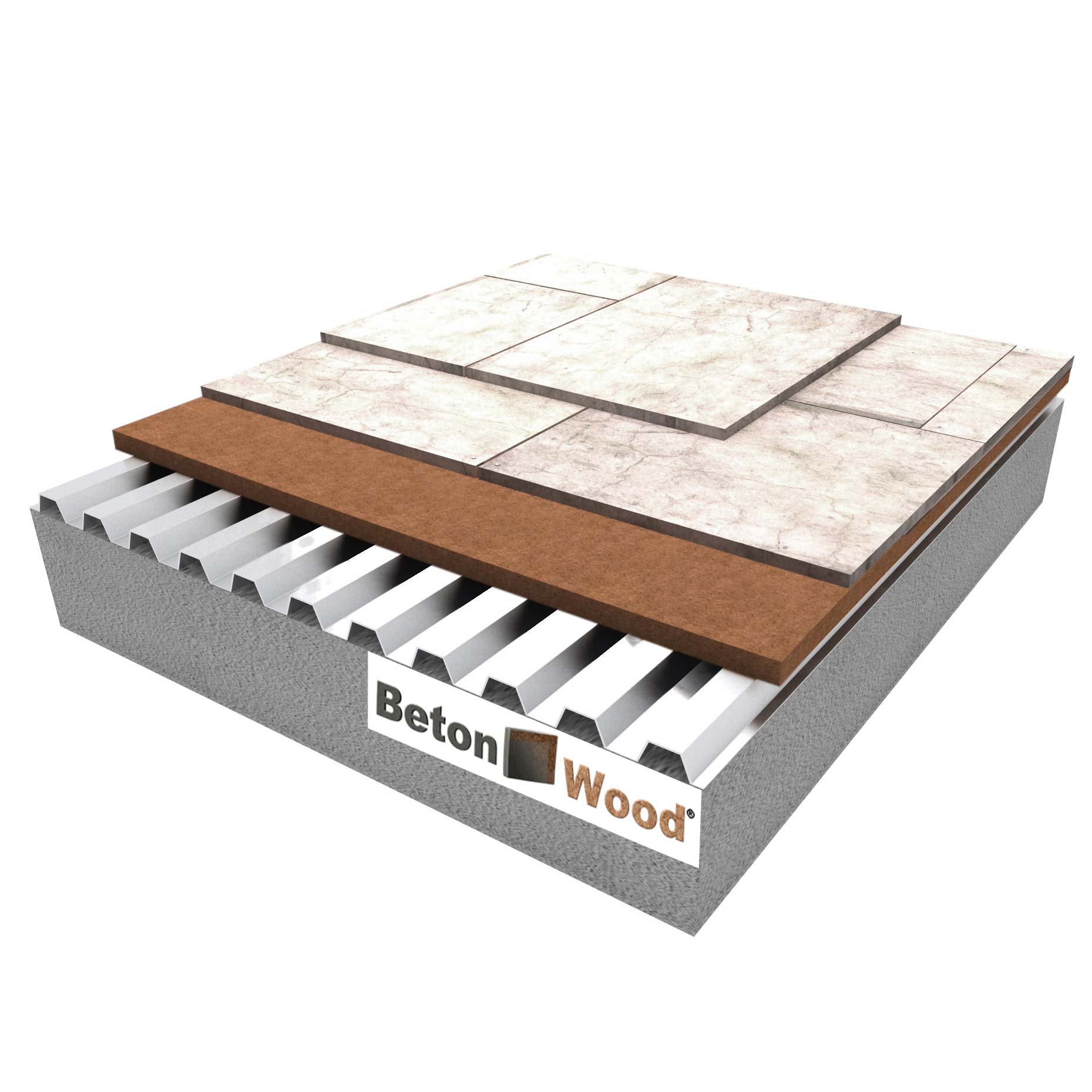

Screed with wood fibre board on corrugated sheet
Screed system on corrugated metal sheet with high density and high compression resistance wood fibre board Fibertherm Base and a double layer of cement bonded particle boards BetonWood.

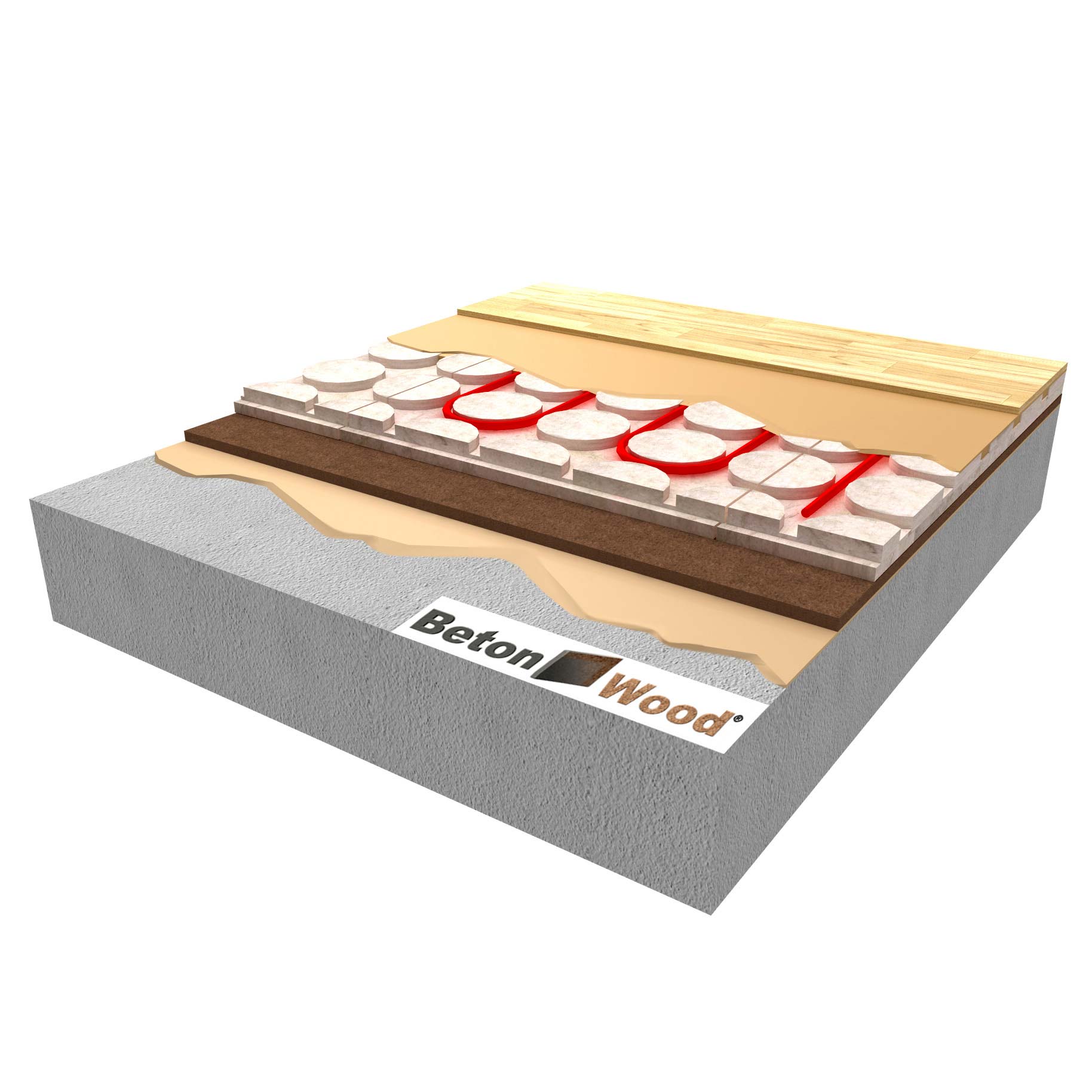

Radiant screed with wood fibre board Base
Radiant natural screed BetonRadiant with thermal and acoustic insulation in high compression resistance wood fibre boards Fibertherm Base.

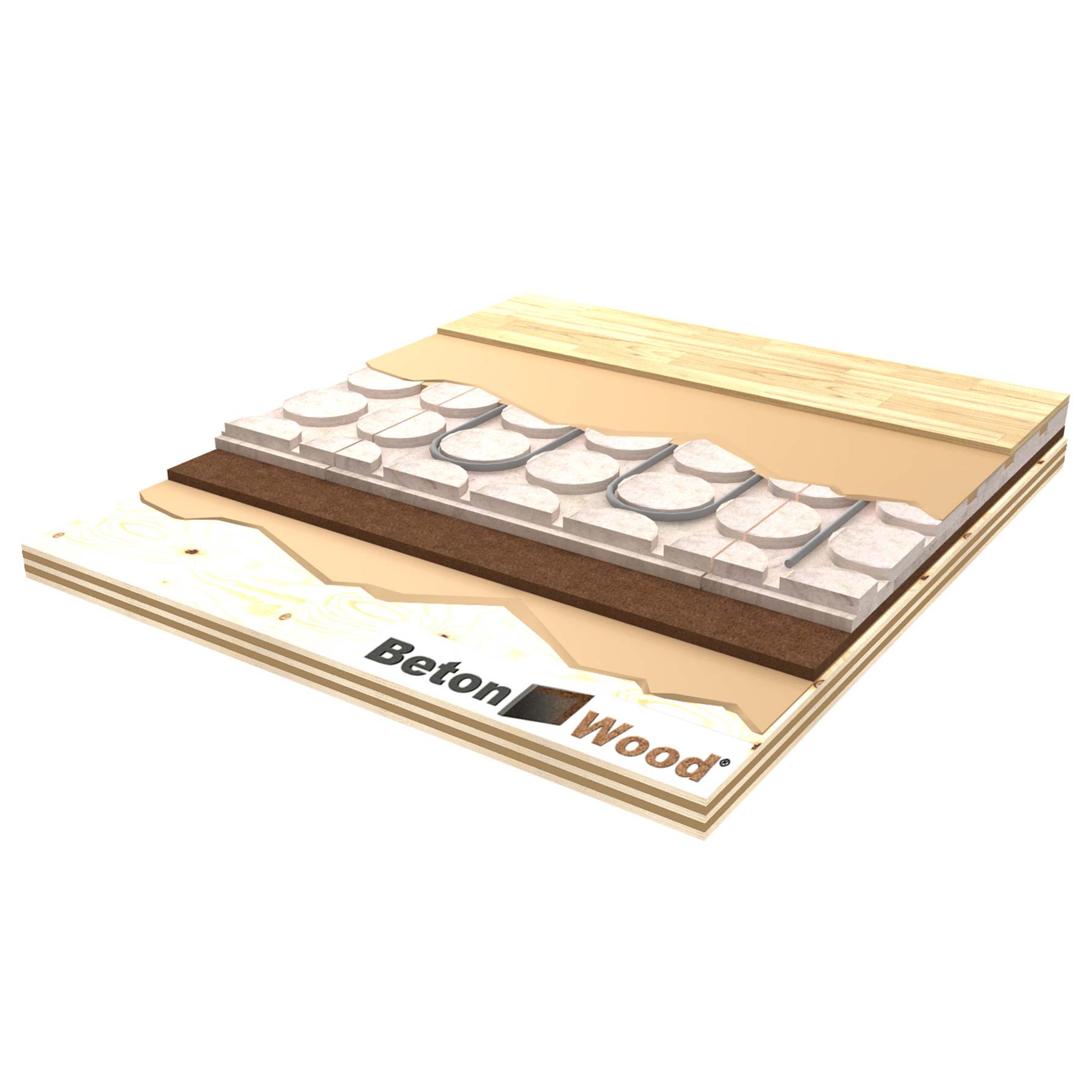

Radiant screed with wood fibre board Base on wooden floors
Radiant natural screed BetonRadiant with thermal and acoustic insulation in high compression resistance wood fibre boards Fibertherm Base on wooden floors.

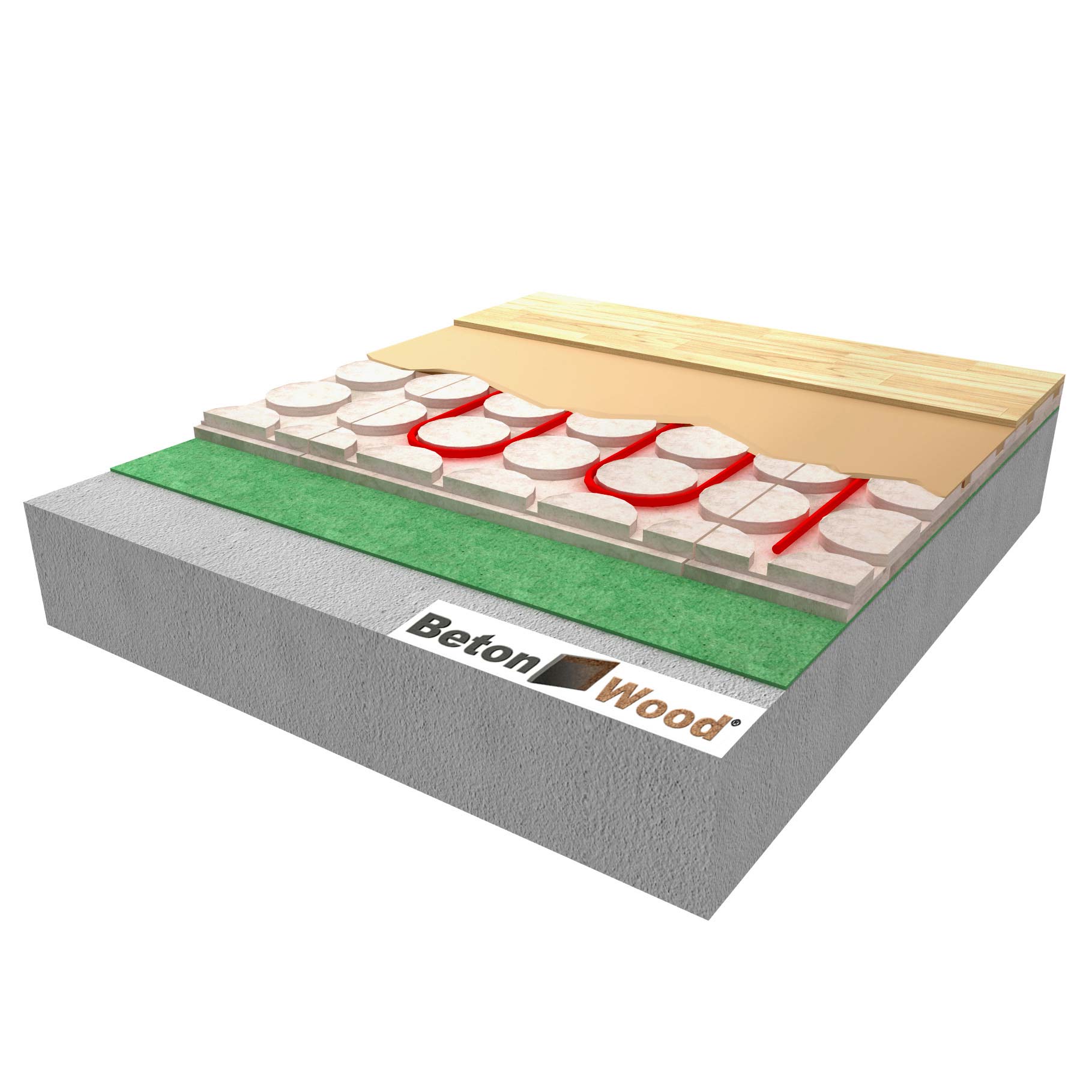

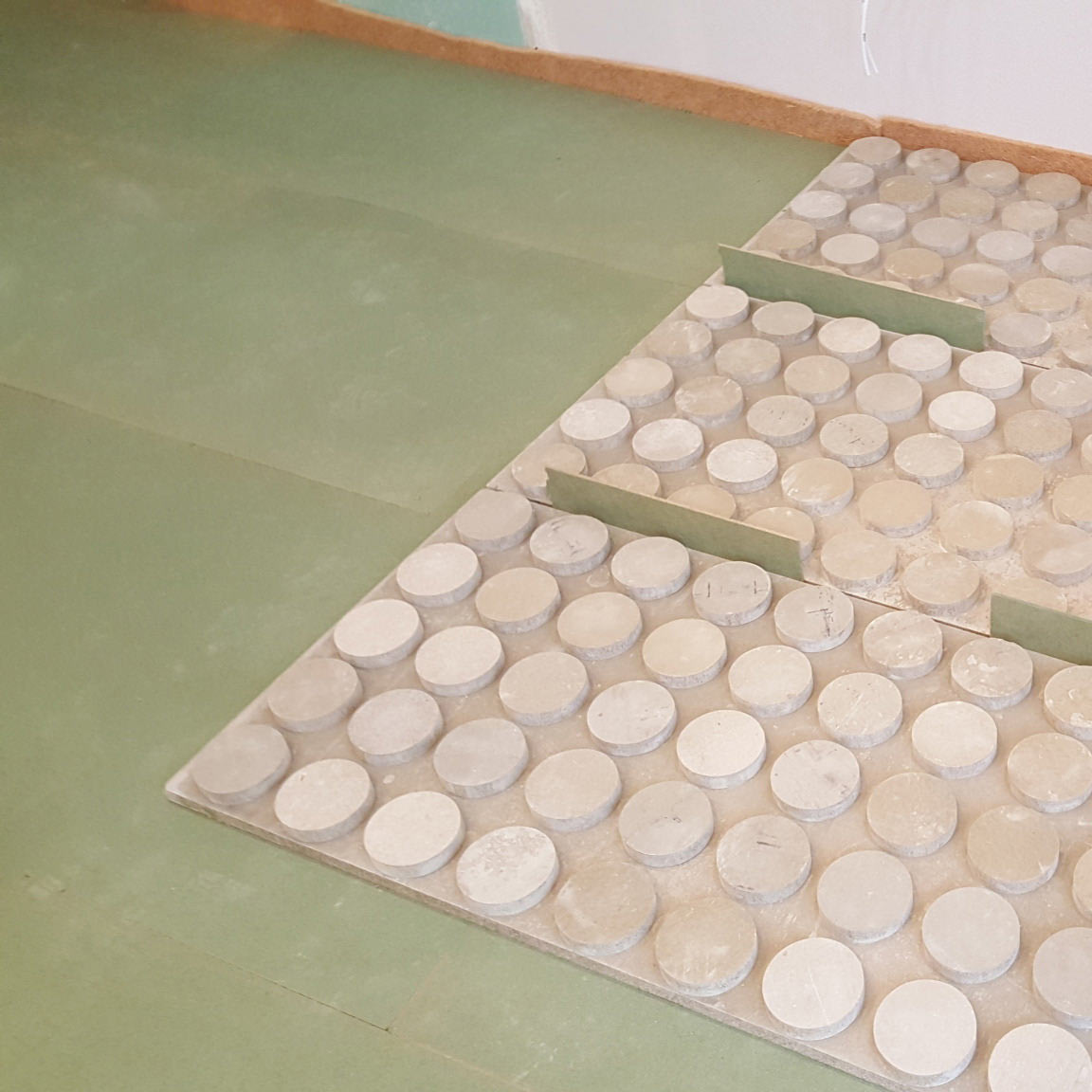

Dry radiant screed with wood fibre board Underfloor
Radiant floor BetonRadiant with high compression resistance acoustic insulatio in wood fibre board thin mat FiberTherm Underfloor.

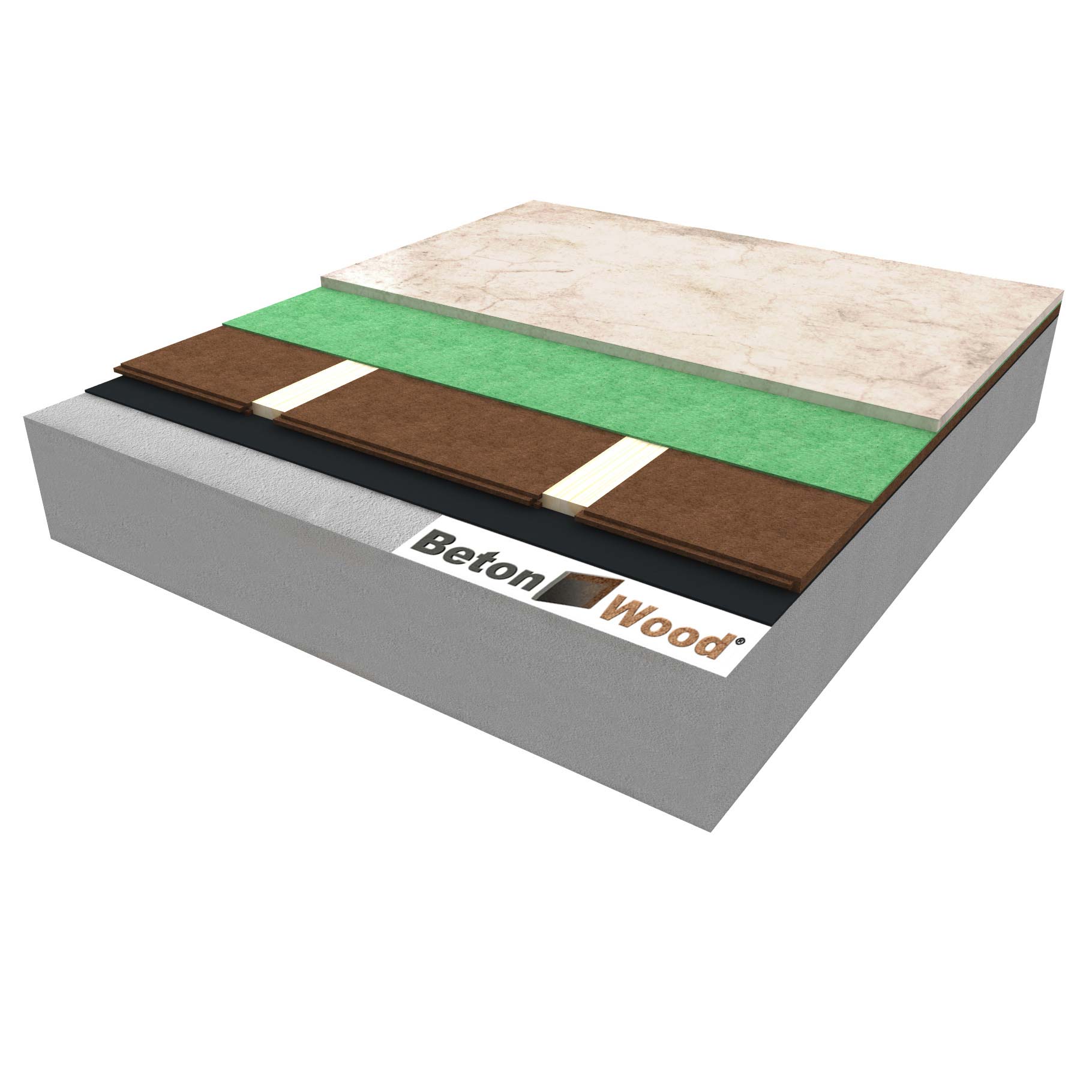

Wood fibre board dry screed FiberTherm Floor
Wood fibre board dry system FiberTherm Floor, wood fibre board thin mat FiberTherm Underfloor and cement bonded particle boards BetonWood with high acoustic insulation power.
Elevated radiant screed on loose wood fibre boards Zell and Underfloor
Radiant screed BetonRadiant with wood fibre board Underfloor and BetonWood T&G cement bonded particle boards on loose wood fibre boards Zell.

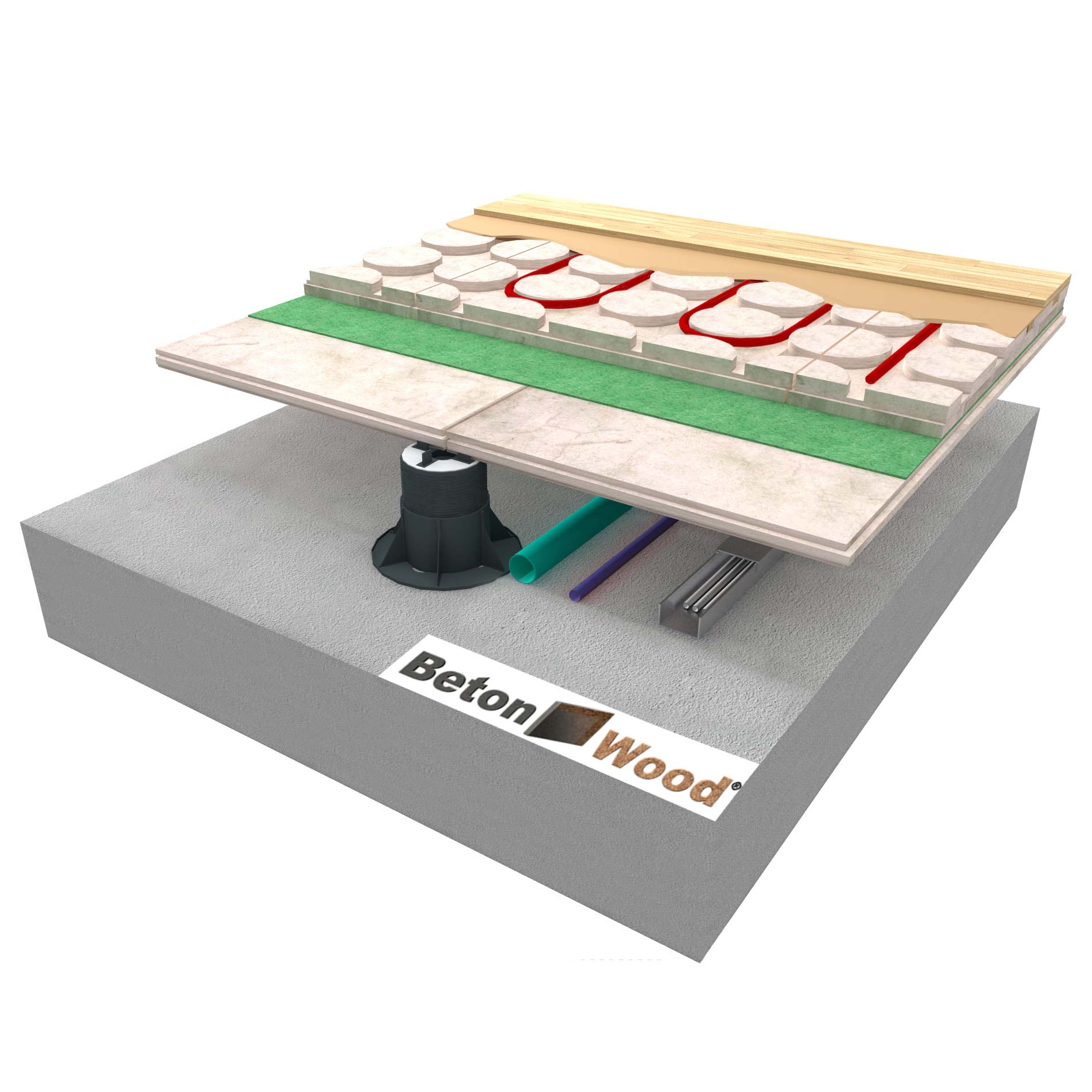

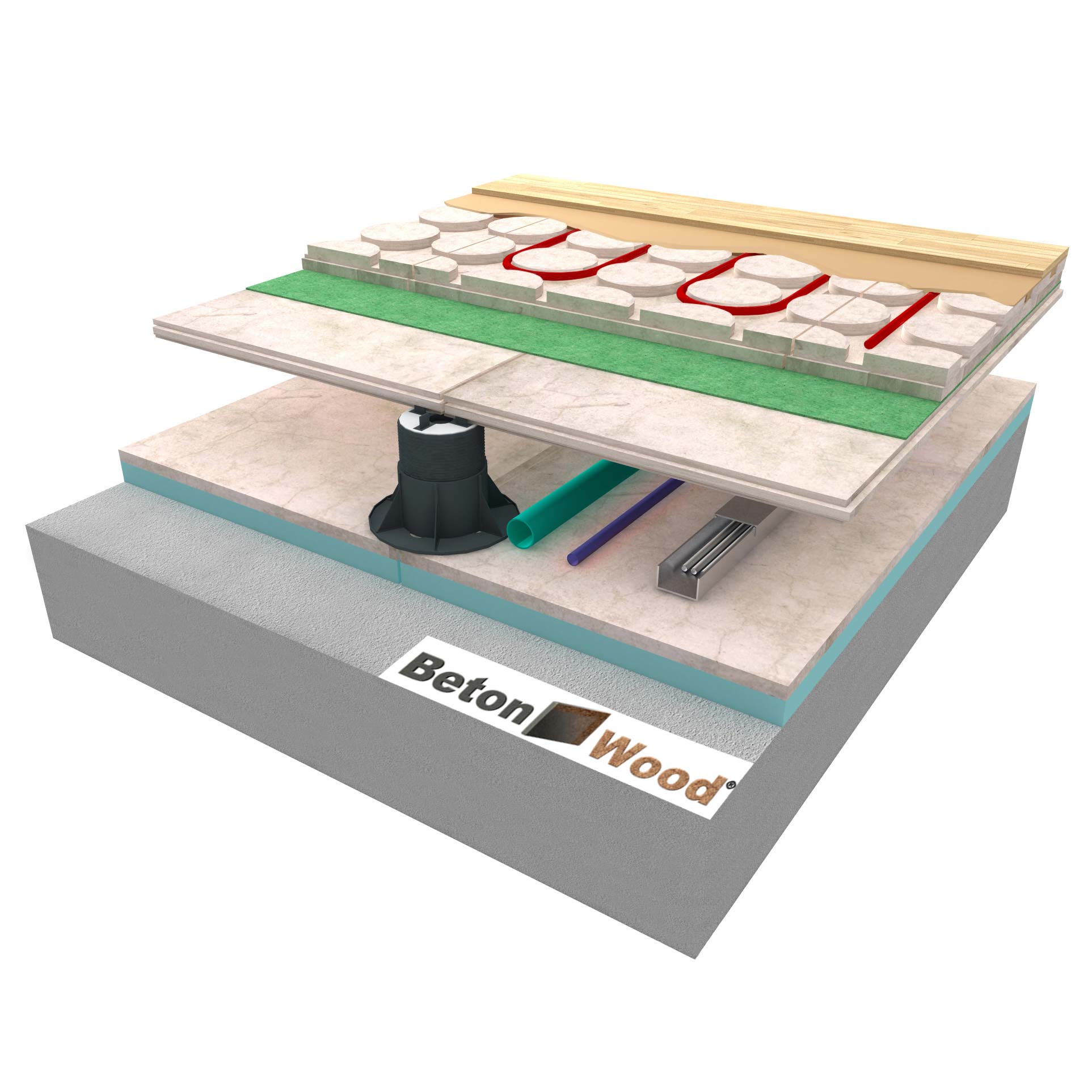

Elevated radiant screed with wood fibre boards Underfloor on support
Elevated radiant screed with Underfloor wood fibre board thin mat and BetonWood T&G cement bonded particle boards on self-leveling supports.
Elevated radiant screed with Underfloor on supports and BetonStyr
Elevated radiant screed with Underfloor wood fibre board thin mat and BetonWood T&G cement bonded particle boards on self-leveling supports and BetonStyr insulating panels which are cement bonded particle boards coupled with extruded polystyrene XPS.
